introduction to wireless LAN
introduction to wireless LAN
wireless LAN standard

WLAN Customer Considerations
Benefits of WLANs
Range/Coverage
Throughput
Multipath Effects
Integrity and Reliability
Interoperability with Wired Infrastructure
Interoperability with Wireless Infrastructure
Interference and Coexistence
Simplicity/Ease of Use
Security
Cost
Scalability
Battery Life for Mobile Platforms
Safety

Benefits of WLANs

The widespread strategic reliance on networking among competitive businesses and the meteoric growth of the Internet and online services are strong testimonies to the benefits of shared data and shared resources. With wireless LANs, users can access shared information without looking for a place to plug in, and network managers can set up or augment networks without installing or moving wires. Wireless LANs offer the following productivity, service, convenience, and cost advantages over traditional wired networks:

Range/Coverage

The distance over which RF waves can communicate is a function of product design (including transmitted power and receiver design) and the propagation path, especially in indoor environments. Interactions with typical building objects, including walls, metal, and even people, can affect how energy propagates, and thus what range and coverage a particular system achieves. Most wireless LAN systems use RF because radio waves can penetrate many indoor walls and surfaces. The range (or radius of coverage) for typical WLAN systems varies from under 100 feet to more than 500 feet. Coverage can be extended, and true freedom of mobility via roaming, provided through microcells.

Throughput

As with wired LAN systems, actual throughput in wireless LANs is product and set-up dependent. Factors that affect throughput include airwave congestion (number of users), propagation factors such as range and multipath, the type of WLAN system used, as well as the latency and bottlenecks on the wired portions of the WLAN. Typical data rates range from 1 to 11 Mbps.

Mulitpath Effects

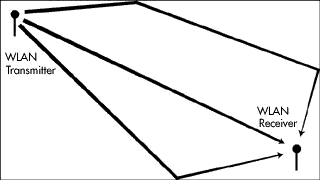

As Figure 9 shows, a radio signal can take multiple paths from a transmitter to a receiver, an attribute called multipath. Reflections of the signals can cause them to become stronger or weaker, which can affect data throughput. Affects of multipath depend on the number of reflective surfaces in the environment, the distance from the transmitter to the receiver, the product design and the radio technology.

Figure 9. Radio Signals Traveling over Multiple Paths

Integrity

Wireless data technologies have been proven through more than fifty years of wireless application in both commercial and military systems. While radio interference can cause degradation in throughput, such interference is rare in the workplace. Robust designs of proven WLAN technology and the limited distance over which signals travel result in connections that are far more robust than cellular phone connections and provide data integrity performance equal to or better than wired networking.

Interoperability with Wired Infrastructure

Wireless data technologies have been proven through more than fifty years of wireless application in both commercial and military systems. While radio interference can cause degradation in throughput, such interference is rare in the workplace. Robust designs of proven WLAN technology and the limited distance over which signals travel result in connections that are far more robust than cellular phone connections and provide data integrity performance equal to or better than wired networking.

Interoperability with Wireless Infrastructure

There are several types of interoperability that are possible between wireless LANs. This will depend both on technology choice and on the specific vendor's implementation. Products from different vendors employing the same technology and the same implementation typically allow for the interchange of adapters and access points. An eventual goal of the IEEE 802.11 specification, currently being drafted by a committee of WLAN vendors and users, is to allow compliant products to interoperate without explicit collaboration between vendors.

Interference and Coexistence

The unlicensed nature of radio-based wireless LANs means that other products that transmit energy in the same frequency spectrum can potentially provide some measure of interference to a WLAN system. Micro-wave ovens are a potential concern, but most WLAN manufacturers design their products to account for microwave interference. Another concern is the co-location of multiple WLAN systems. While co-located WLANs from different vendors may interfere with each other, others coexist without interference. This issue is best addressed directly with the appropriate vendors.

Simplicity/Ease of Use

Users need very little new information to take advantage of wireless LANs. Because the wireless nature of a WLAN is transparent to a user’s NOS, applications work the same as they do on tethered LANs. WLAN products incorporate a variety of diagnostic tools to address issues associated with the wireless elements of the system; however, products are designed so that most users rarely need these tools. WLANs simplify many of the installation and configuration issues that plague network managers. Since only the access points of WLANs require cabling, network managers are freed from pulling cables for WLAN end users. Lack of cabling also makes moves, adds, and changes trivial operations on WLANs. Finally, the portable nature of WLANs lets network managers preconfigure and troubleshoot entire networks before installing them at remote locations. Once configured, WLANs can be moved from place to place with little or no modification.

Security

Because wireless technology has roots in military applications, security has long been a design criterion for wireless devices. Security provisions are typically built into wireless LANs, making them more secure than most wired LANs. It is extremely difficult for unintended receivers (eavesdroppers) to listen in on wireless LAN traffic. Complex encryption techniques make it impossible for all but the most sophisticated to gain unauthorized access to network traffic. In general, individual nodes must be security-enabled before they are allowed to participate in network traffic.

Cost

Because wireless technology has roots in military applications, security has long been a design criterion for wireless devices. Security provisions are typically built into wireless LANs, making them more secure than most wired LANs. It is extremely difficult for unintended receivers (eavesdroppers) to listen in on wireless LAN traffic. Complex encryption techniques make it impossible for all but the most sophisticated to gain unauthorized access to network traffic.In general, individual nodes must be security-enabled before they are allowed to participate in network traffic. [Please see WLANA’s web site for a detailed white paper on security.]

Scalability

Wireless networks can be designed to be extremely simple or quite complex. Wireless networks can support large numbers of nodes and/or large physical areas by adding access points to boost or extend coverage.

Battery Life for Mobile Platforms

End-user wireless products are capable of being completely untethered, and run off the battery power from their host notebook or hand-held computer. WLAN vendors typically employ special design techniques to maximize the host computer’s energy usage and battery life.

Safety

The output power of wireless LAN systems is very low, much less than that of a hand-held cellular phone. Since radio waves fade rapidly over distance, very little exposure to RF energy is provided to those in the area of a wireless LAN system. Wireless LANs must meet stringent government and industry regulations for safety. No adverse health affects have ever been attributed to wireless LANs.
